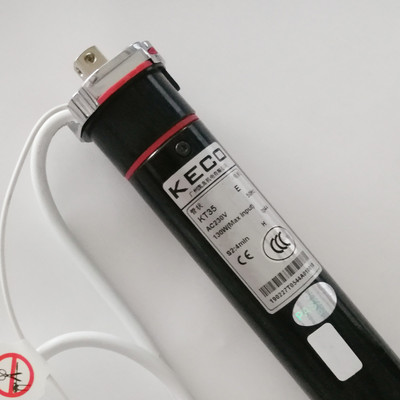

KECO Standard Tubular motor for roller blinds with super quiet performance and switch controlling for rolling shade, automatic blinds motor and various rolling blinds, venetian blinds, roman blinds and projector, screen, it brings easy integration for automation system for hotel, office and homes by switch controlling
Feature:
1. Easy and fast assemble and install.
2, 12 mm spacing between the fabric and wall, very little light comes in when it is close.
3. Fast Speed to avail more height;
4. Tempeature protection to safeguard the motor and durable;
5. Quiet design with noise less than 36dB.
Specifications:
Votage: 230V or 120V are available.
Certificate: CE
Max Rolling: 38 Rolls
Accessories: Multiple choice
Items: Standard, Manual, Radio control, Quiet, Electronic items.
Quality Assurance: We provide three years warranty.
Model No. | Rated Torque | Rated RPM | Rated Voltage | Rated Power | Rated Current | Proection Index | Insulaton Index | Running Time |
KT35-6/28-S | 6N.M | 28 rpm | AC230/50HZ/110V/60HZ | 115W | 0.565A | IP44 | H | S2-4min |
Product wiring
Dimension of tubular motor
Applications of tubular motor

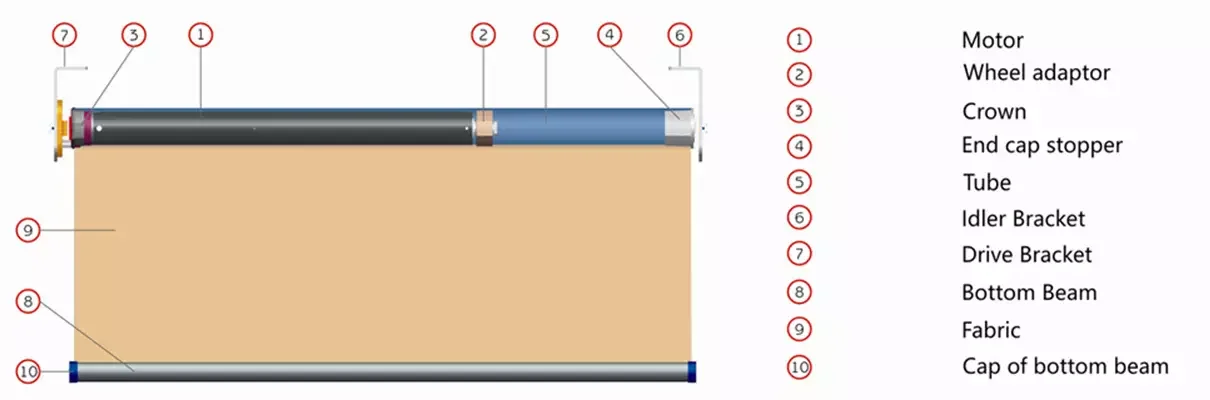

Typical Accessories used in motorized roller blinds
Trade Term
1. Inco Term: EXW GUANGZHOU;
2 OEM Accepted;
