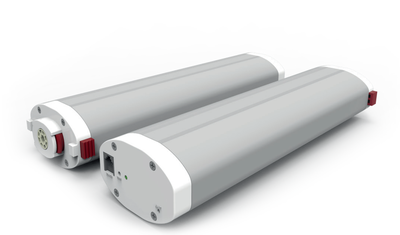

KECO drapery motor KA75A, super quiet noise level lower than 33dBA. Remote controlling function, high quality components in curtain motor and accessories in electrical curtain track, and 30-meter remote controlling range.
The controlling for home automation by RS485, zigbee, zwave, dry contact, UART are also possible to make as per your requirements.
It would be a highly pleasant experiences for you to use the KA75A curtain motor with its automated limit stop, smart and super quiet, stable performance.
Model Number: KA75A(M1101)
Specifications of motor:
Voltage: AC100-240V/ 50/60HZ;
Torque: 1.6Nm;
Speed: 10CM/S;
Protection Index: IP41;
Power: 50W;
RF: 433MHZ;
RF range: 30 meters.
Controlling
Features:
1. 33dB, and free of lubrication.
2. Touch-start, activiate the curtain just slightly pulling of the curtain.
3 Manual operating in case of power failure.
4. Applicable to home electricity worldwide.
5. Bounce to the rigth position automatically without extrusion of fabric.
6. Automatic curtain limit.
7, Soft start and soft stop to protection the motor and curtain accessories.
8. AVR industry excellent performance processor to guarantee long duration.
9. Track Length: 2-12 Meter
Accessories for KA75A(M1101)
Product wiring
Weight Capacity
KA75A(M1101) Packages
KA75A(M1101) Track Dimension
KA75 Curve Tracks
Certificate
Market
Trade Term
1. Inco Term: EXW GUANGZHOU;
2. OEM Accepted;
Shipping
