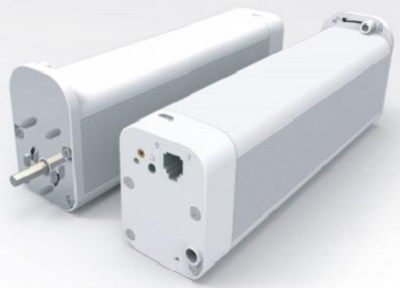

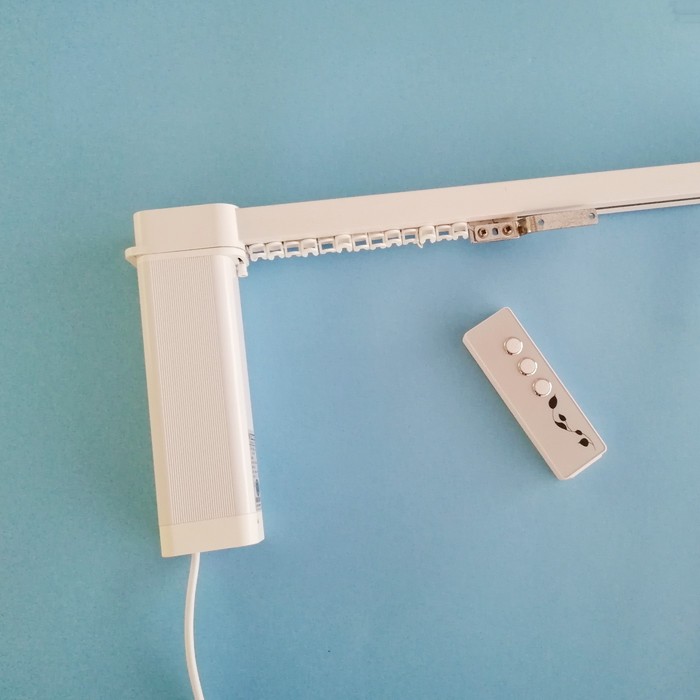

KECO Zigbee Curtain Motor KA80A-RY for smart home automation based on zigbee communications . Zigbee 2.0 / 3.0 are both available here.
As universal zigbee curtain drive, it plays a very important part in motorized curtain, automatic curtain with remote controllers for hotel curtain, smart home curtain by universal zigbee controlling.
By KECO production and technician's powerful performance, All motors can be made with special z-wave or zigbee module to control with smart home automation system.
Zigbee module:
Model Number: KA80A-RY
Specifications:
1. Curtain motor with RF receiver 433MHZ;
2. Electric curtain and automatic curtain;
3. Zigbee 8dB, 20dBA availale.
4. Automatic curtain motor with custom made smart phone controlling;
5. Drapery Motor;
6. DC Powered Motor Curtain;
7. electric curtain track motor ;
Voltage | Frequency | Power | Torque | Speed | Line speed | Insulation class | Protection class |
AC100-240V | 50Hz/60Hz | 50W | 1.2Nm | 112rpm | 14cm/S | E | IP41 |
Features:
1. DC MOTOR, Low noise < 27dBA, and free of lubrication.
2. Pull force not less than 8Kg and load weight not less than 55kg, applicable to medium-scale curtain
3 Manual operating in case of power failure, and start the motor automatically by drawing the textiles slightly.
4, Switch mode Power supply AC100-240V
5. Bounce to the rigth position automatically without extrusion of fabric.
6, Set the stop limit by manual pull , which adjusts the shading of light and tidy the fabric itself.
7, Built-in stop sensitive components, it finds limits and stops by counting automatically
8, No noise caused by clutch on and off by completely new EM clutch.
9. AVR industry excellent performance processor.
Product wiring

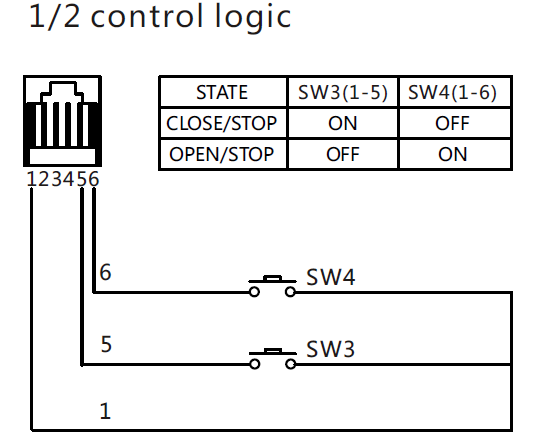

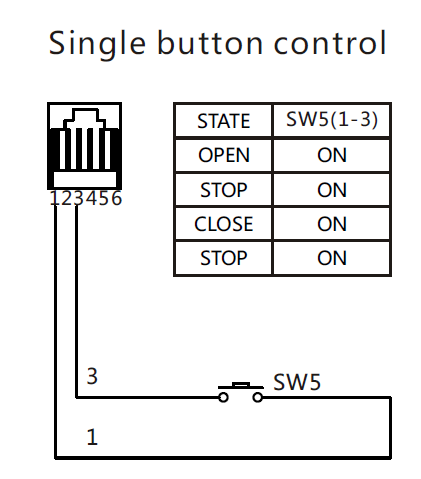

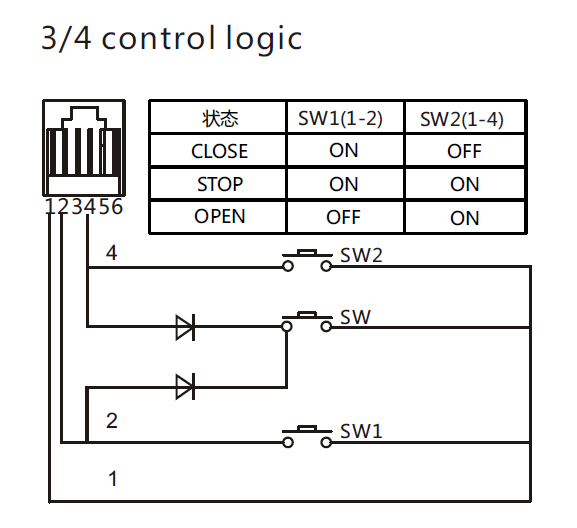

RJ11 Wiring

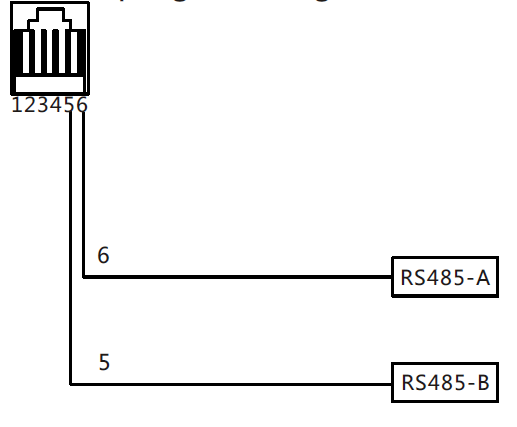

RS485 Controlling(Instruction must be told prior to production)

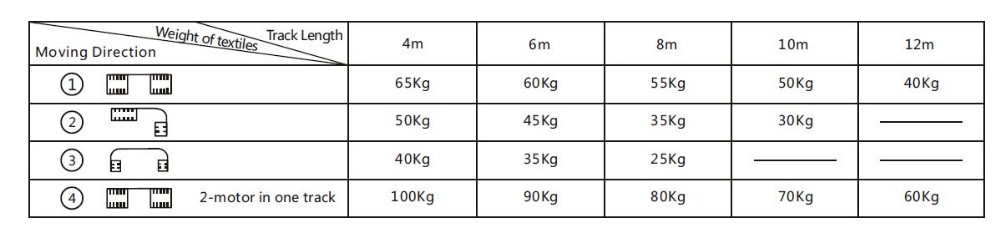

Load Capacity of Weight

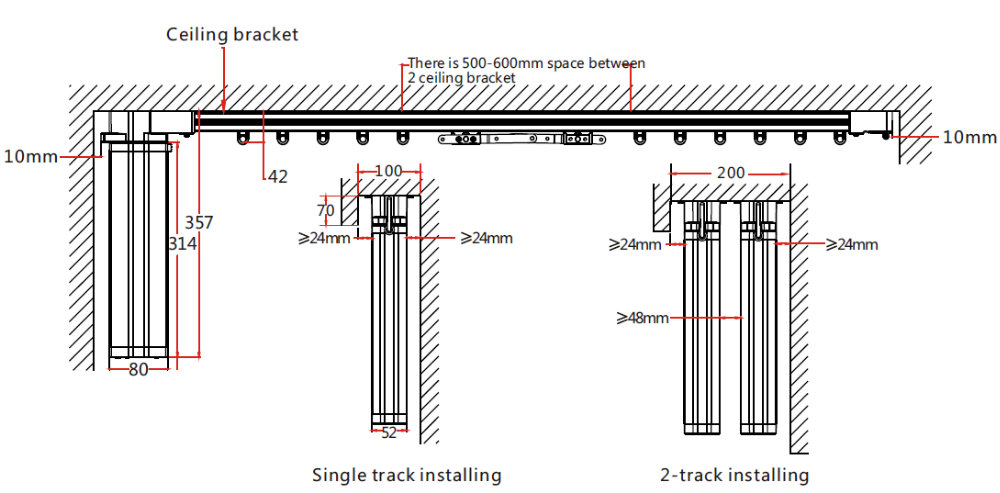

Complete System Dimension
Morever

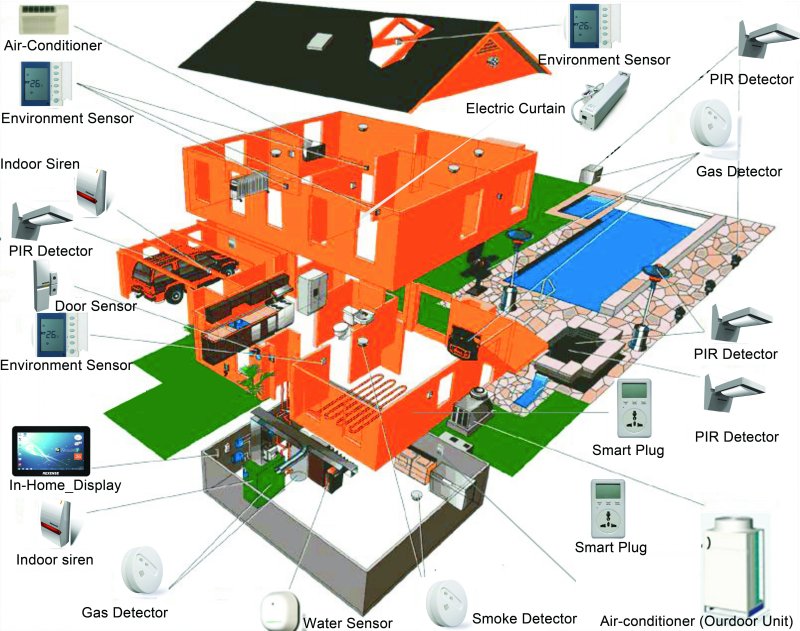

Zigbee Home Automation system with KECO electric curtain

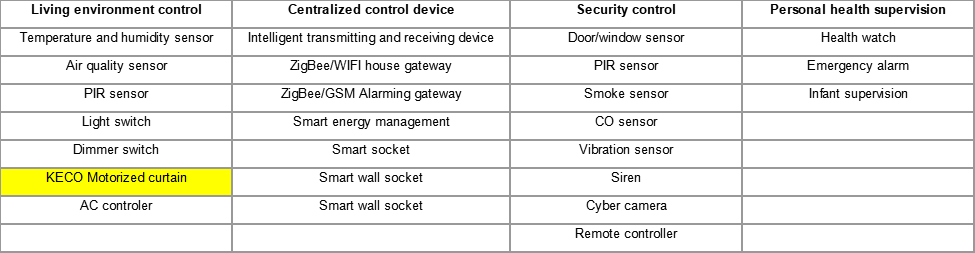

Device List
Trade Term
1. Inco Term: EXW GUANGZHOU;
2. OEM Accepted;
Shipment
