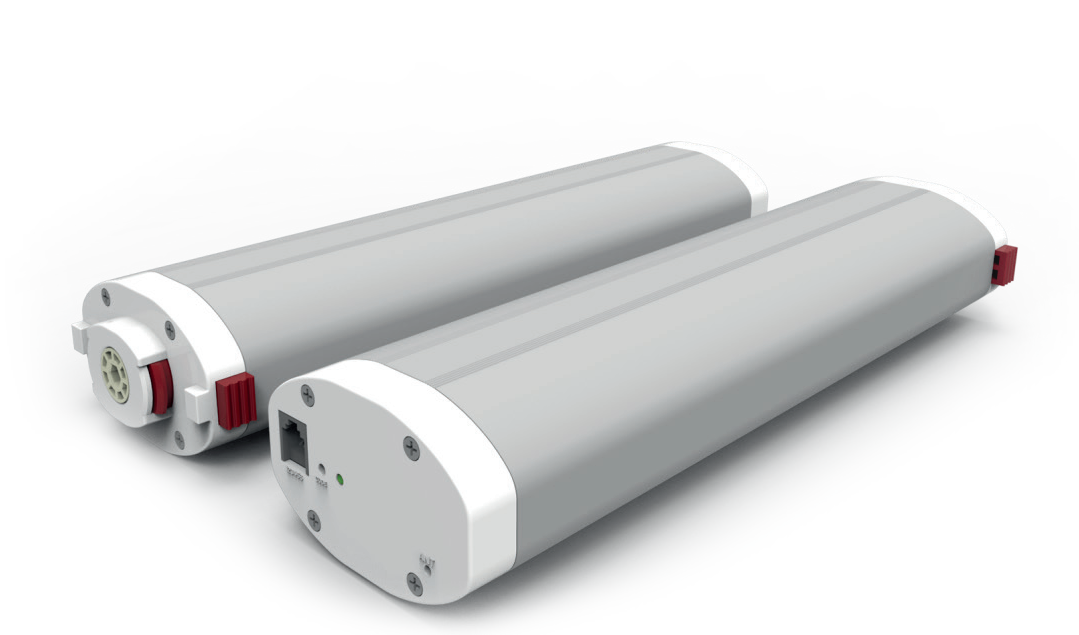

KECO electric curtain motor KA75C for home automation by high voltage switch controlling for heavy duty home curtains and hotel curtains.
The super quiet design are used in the DC curtain motor with high qualiyt components. It brings you a super pleasant automation system experiences with motorized curtain track and electric curtain system, automatic curtain system, and the curtain motor runs stably in motorized curtain track.
By its smart automatic curtain limit setting and limit memory, It doesn't need professional knowledge to set it and perform it. The smart curtain motor help users to be satisfied with the automation system.
Model Number: KA75C
Specifications of motor:
Voltage: AC100-240V/ 50/60HZ;
Torque: 1.6Nm;
Speed: 10CM/S;
Protection Index: IP41;
Power: 50W;
RF: 433MHZ
Voltage | Frequency | Power | Torque | Speed | Line speed | Insulation class | Protection class |
AC100-240V | 50Hz/60Hz | 50W | 1.6Nm | 100rpm | 10cm/S | E | IP41 |
Features:
1, DC MOTOR, Low noise moving as 33dB, and free of lubrication.
2. Pull force not less than 8Kg and weight capacity 65kg, applicable to medium-scale and heavy duty curtain
3 Manual operating in case of power failure, and start the motor automatically by drawing the textiles slightly.
4, Switch mode Power supply AC100-240V
5, Bounce to the rigth position automatically without extrusion of fabric.
6, Set the stop limit by manual pull , which adjusts the shading of light and tidy the fabric itself.
7, Built-in stop sensitive components, it finds limits and stops by counting automatically
8, No noise caused by clutch on and off by completely new EM clutch.
9. AVR industry excellent performance processor.
Manual Operating

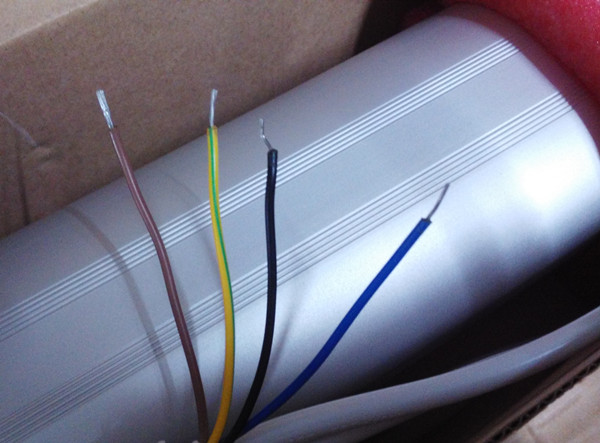

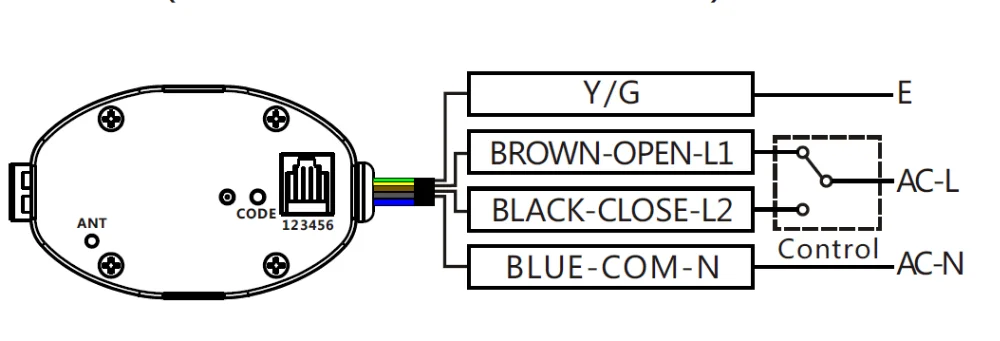

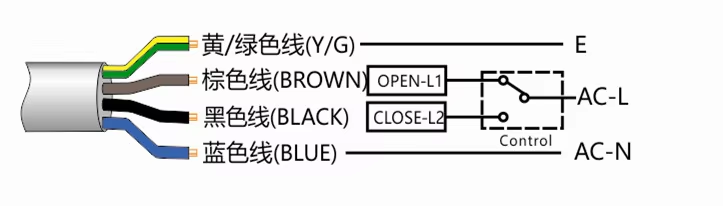

Product wiring(High Voltage Switch Controlling)

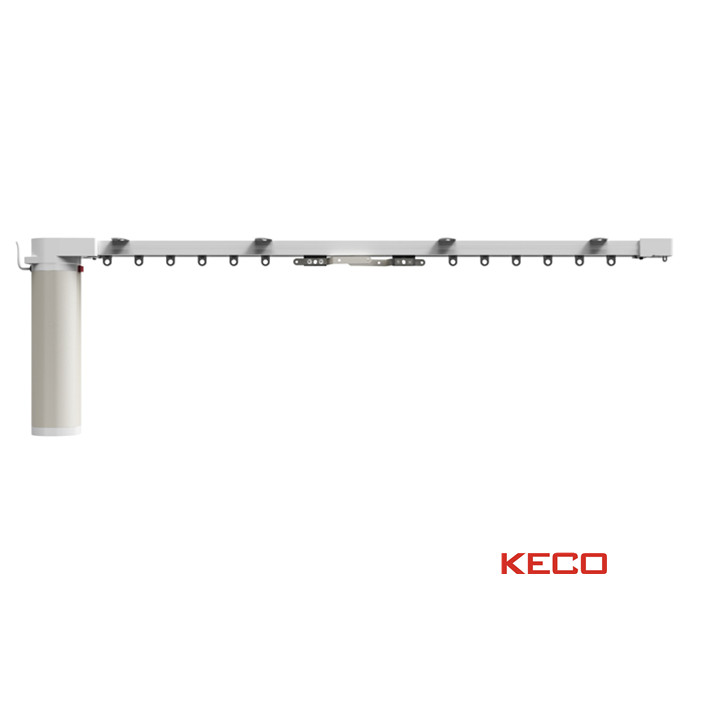

Accessories of KA75C

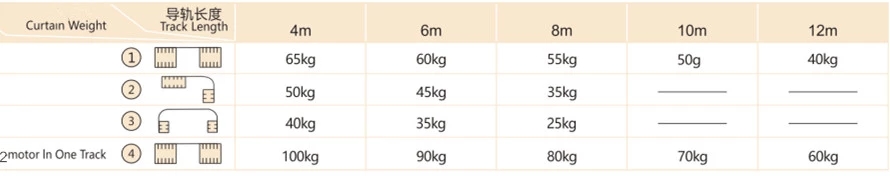

Weight Capacity

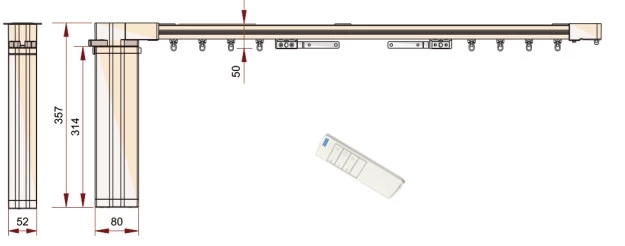

Dimension

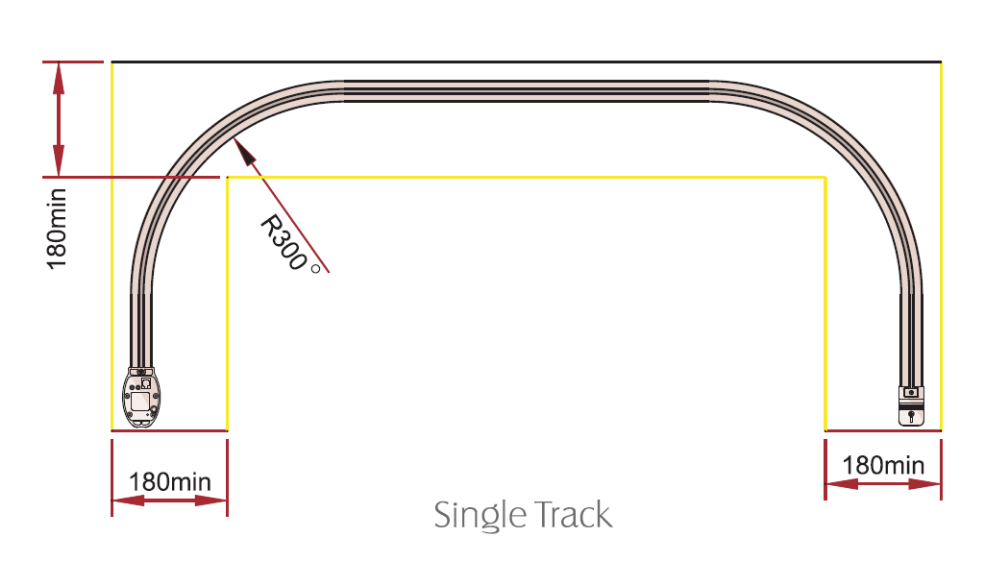

Curve tracks Dimension

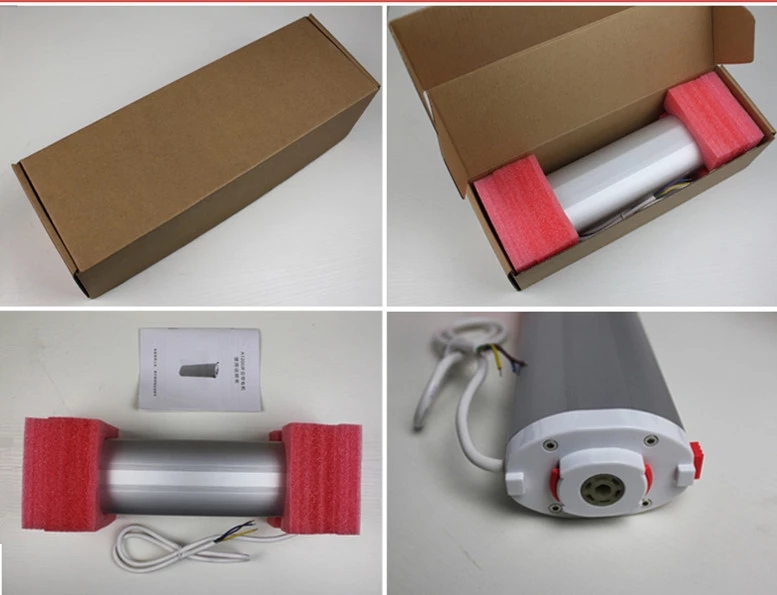

Packaging
Certificate
Trade Term
1. Inco Term: EXW GUANGZHOU;
2. OEM Accepted;
Shipping
